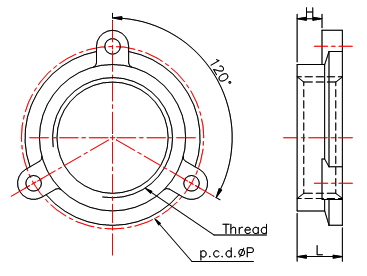

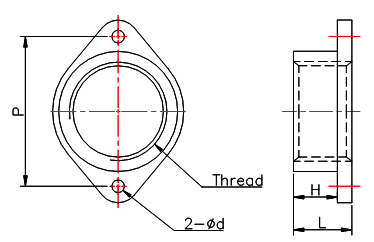

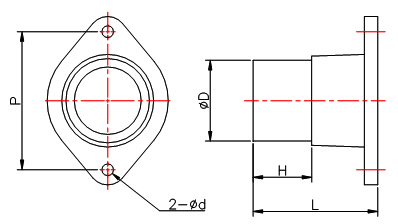

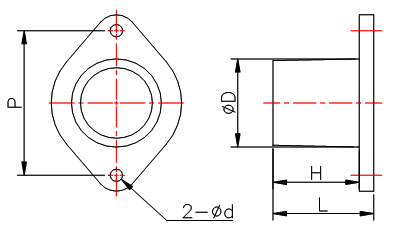

Home > Products > Accessories     Vacuum Pump (VRT)   Compressor (DRT)   Combination Pump (DVT)   Side Channel Blower (RT)   Turbo Blower (TB)   Accessories     side channel blower 　 - relief valve (RVA) 　 - relief valve (RV) 　 - inlet/outlet flange 　 - elbow and bend 　 - inlet filter 　 - tee pipe 　 - silencer 　   Roatry vane pump     Accessories     Inlet /Outlet Flange   - for Hose Pipe   Type No. D mm d mm H mm L mm P mm Weight kgs Material Diagram 1-OD-32 32 5.5 29 35 50 0.05 Aluminum 1 2-OD-32 32 6 31 38 64 0.08 Aluminum 1 2-OD-37 37 6 31 38 64 0.07 Aluminum 1 3-OD-44 44 6 37 44 67 0.08 Aluminum 1 3-OD-51 51 6 31 38 67 0.09 Aluminum 1 4-OD-50 50 7 44 52 83 0.14 Aluminum 1 4-OD-57 57 7 58 65 83 0.18 Aluminum 1 3-OD-44-2 44 7 28 57 67 0.11 Aluminum 2 3-OD-55-2 55 7 52 105 67 0.28 Aluminum 2       -for Thread Pipe   Type No. Thread PF(or USA PF) d mm H mm L mm P mm Weight kgs Material Diagram 1-T10 1” 5.5 18 23 50 0.05 Aluminum 3 2-T12 1 1/4” 6 22 29 64 0.07 Aluminum 3 3-T15 1 1/2” 6 24 31 67 0.08 Aluminum 3 5-T20 2” 7 18 25 83 0.10 Aluminum 3 7-T25 2 1/2” 7 16 31 130 0.80 Cast Iron 4 9-T40 4” 9 29 36 150 1.10 Cast Iron 3
